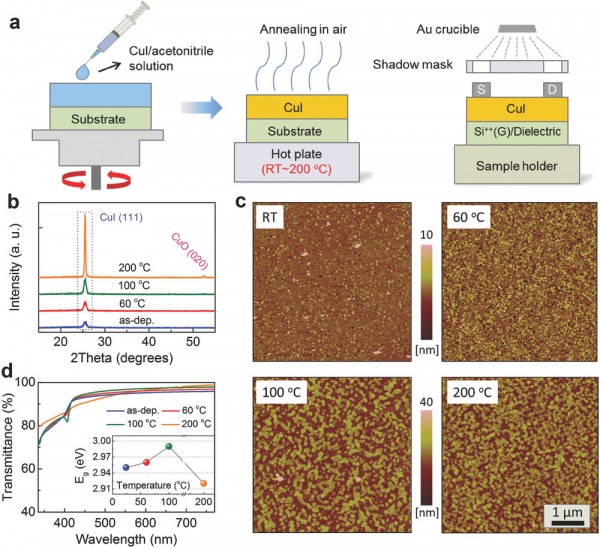

Here, room-temperature solution-processed inorganic p-type copper iodide (CuI) thin-film transistors (TFTs) are reported for the first time. The spin-coated 5 nm thick CuI film has average hole mobility (µFE) of 0.44 cm2 V−1 s−1 and on/off current ratio of 5 × 102. Furthermore, µFE increases to 1.93 cm2 V−1 s−1 and operating voltage significantly reduces from 60 to 5 V by using a high permittivity ZrO2 dielectric layer replacing traditional SiO2. Transparent complementary inverters composed of p-type CuI and n-type indium gallium zinc oxide TFTs are demonstrated with clear inverting characteristics and voltage gain over 4. These outcomes provide effective approaches for solution-processed inorganic p-type semiconductor inks and related electronics.
